Low & Medium Efficiency Filters

For Industrial, Commercial and Residential Applications

Poly Filters

– Chipboard frame
– Synthetic media consists of polyester
– Media is bonded together in an interlocking pattern, which maximizes dust loading while minimizing resistance and surface loading
– Designed to be changed monthly
– Available in ¼”, ½”, 1” & 2” depths
– Available in all standard sizes
– Non-standard sizes can be manufactured

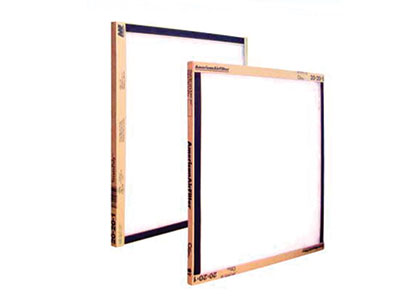

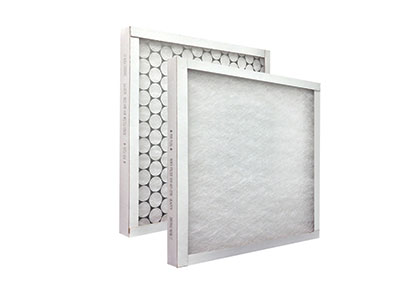

FIBERGLASS

– Chipboard frame
– UL 900 Class2
– UPC marked
– Choice of no media retainer or with a metal media retainer
– Designed for protection of furnace and central air units in residential and light commercial applications
– Designed to be changed monthly
– Available ¼”, ½” & 1” depths
– Available in all standard sizes
– Non-standard sized can be manufactured

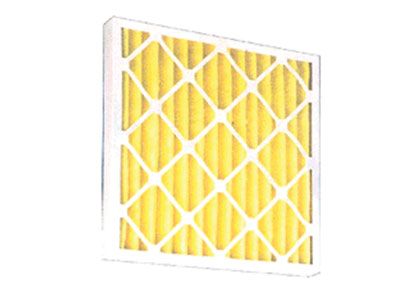

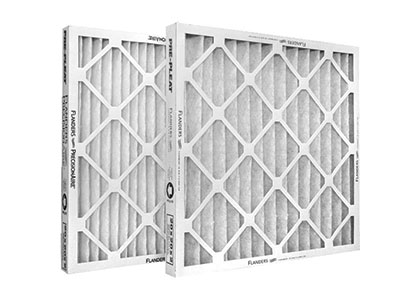

PRE PLEAT 40

– Media maximizing v-pleat design
– Expanded metal grid prevents media flutter while in operation
– Diagonal and horizontal support members provide frame strength
– Filter media pack is sealed to eliminate air bypass
– Designed to be changed every 60-90 days
– Available in 1”, 2”, 4” depths
– Average ASHRAE efficiency is 25-30%
– Average arrestance is 90%-92%

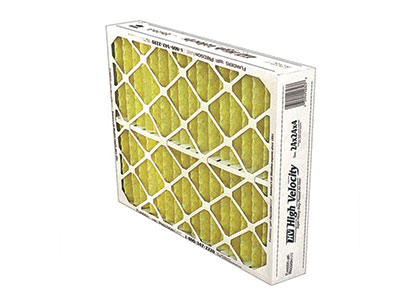

PRE PLEAT HV (High Velocity & Gas Turbine Pleat)

– Moisture resistant die-cut frame

Heavy gauge metal backing for exceptional strength
– Available in 1:, 2”, & 4” depths
– Available in all standard sizes
– Non-standard sizes can be manufactured
– Designed to operate in high velocity and turbulent air applications where standard pleated filters have a tendency to fail
– Ideal for gas turbine and rotary machinery equipment or any area requiring a pleated filter to operate under demanding use
– MERV 8 rating per ASHRAE Standard 52.2

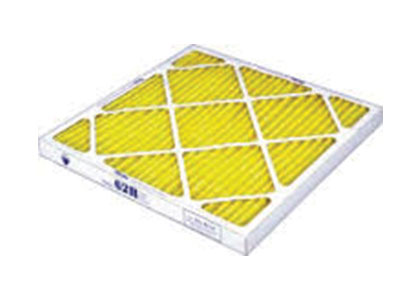

PRE PLEAT 62R

– MERV 8 per ASHRAE standard 52.2
– Designed to improve indoor air quality through a new level of particulate filtration
– 100% synthetic electrostatically charged filtration media, which actively attracts and holds airborne contaminants
– Available in 1”, 2”, & 4” depths
– All standard sizes plus custom sizes
– Standard and high capacity designs
– UL Class 2 listed

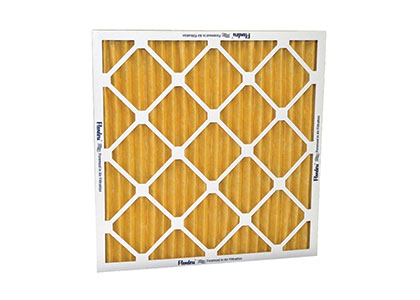

PRE PLEAT 62RM11

– Upgrade existing rooftop and secular systems by up to 300% in efficiency to remove incoming contaminants not previously removed
– Fabricated with mechanically and electrostatically enhanced fibers
– Upgrade existing prefilter plenums with the 62RM11 Pleat to increase the life of your more expensive final filters downstream
– Building owners and occupants will be significantly better protected from a bioaerosol hazard than with conventional filters
– Available by special ordering in High-Velocity design

PRE PLEAT CLASS 1

– UL 900 Class 1 for flammability
– Easily disposable
– Offered in all standard face sizes, 2” depth
– High lofted glass pleated media
– Nominal 50% ASHRAE efficiency
– MERV 8 rating

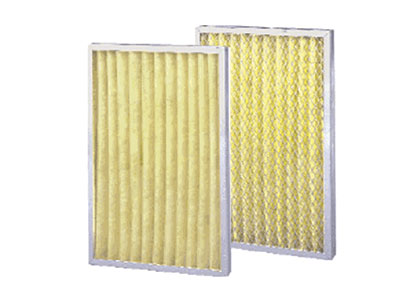

PRE PLEAT HT

– Resists temperatures up to 400 ° F
– Nominal 50% ASHRAE efficiency
– Rugged metal construction
– UL 900 Class 1 Fire Rated

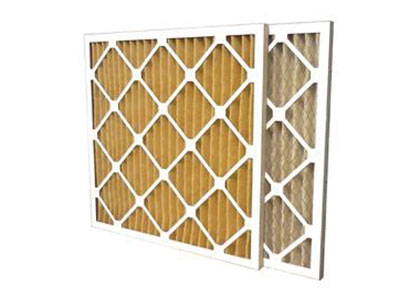

KLEEN PLEAT GOLD

– Media is sprayed with the Dustlok adhesive, and Spor-Ax antimicrobial
– Does not require supportive wire backing
– ASHRAE MERV 7
– Available in 1” (12 pleats per foot), 2” (choice of 8 & 12 pleats per foot), and 4” (choice of 8 & 11 pleats per foot)

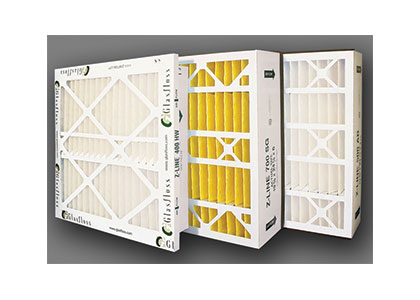

RESIDENTIAL REPLACEMENT FILTERS

Spaceguard
Available in the following sizes:
Aprilaire 501 for Model 5000-Electronic Air Cleaner
Aprilaire 201-for Models 220 & 2250
Aprilaire 401-for Model 2400

Honeywell
Available in the following sizes:
16”x25”x5”
20”x25”x5”
20”x20”x5”
12-1/2”x20”x5”

AirBear
Available in the following sizes:
20”x25”x5”
20”x25”x6”
16”x25”x3”

MS/MSG Moisture/Oil Mist Separators

– Efficiency of 98& on 20 micrometer liquid droplets at 500 fpm
– Corrosion-resistant construction
– Nominal 2 in. thick for application flexibility
– Models for both built-up banks and side access housings
– Designed for use in air handling systems requiring collection of water droplets or oil mist

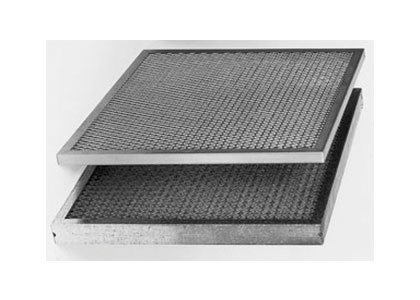

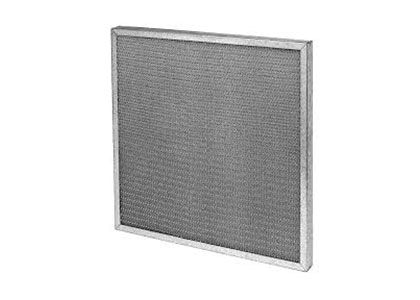

METAL WASHABLES

– Heavy duty, steel frame construction
– Suitable for residential and commercial applications
– Expanded steel retainers
– Aluminum or galvanized steel
– Washable and reusable
– All standard sizes
– Non-standard sizes can be manufactured

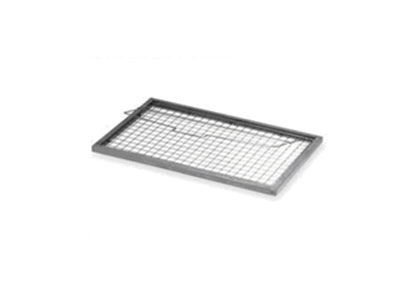

CP FRAMES

– Aluminum or galvanized steel
– Holds preferred filter media
– Reusable
– All standard sizes
– Non-standard sizes can be manufactured

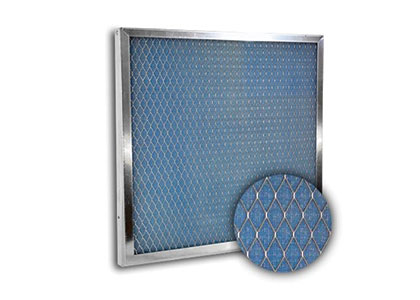

ELECTROSTATIC WASHABLE FILTERS

– Passive electrostatic
– Needs no external power
– Washable and reusable
– Special combination of media to electrostatically charge airborne particles and pull them from the airstream

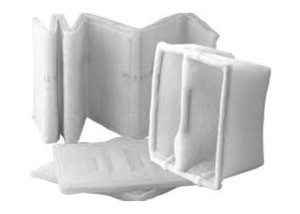

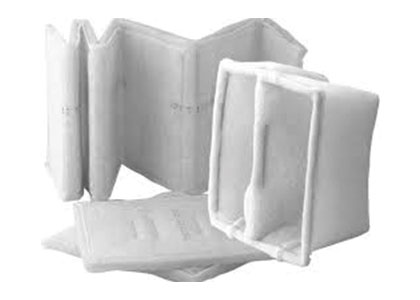

PANELS, LINKS, SLEEVES & CUBES

– Made by heat sealing layers of synthetic filtering media together over an interior, corrosion-resistant steel support frame.

Designed to be installed without the use of retainer fasteners
– Heat sealed construction
– Tackified, progressive density media
– Available with a Spor-Ax Antimicrobial spray, which controls microbial growth
– Naturally moisture-resistant and will not warp or deteriorate in wet or humid conditions
– 2, 3, & 4-ply combinations
– 9 gage galvanized wire frame
– MERV 6-10 available
– UL 900 Class 2

LINK PANELS
Can be ordered as single panels or as link panels

SLEEVE PANELS
Nearly identical to the standard Ring Panel.
One end is left unsealed
The interior support frame can be removed and be reused

CUBES
Internally supported
Greater surface area for contamination capture
2 pocket or 3 pocket construction
Available with 13/16” thick headers for side access installation

Available in:
Series ST55-Poylester Panel -Two-ply 1” nominal media construction using a ½” white polyester on the upstream, following by a ½” nominal green super tackified polyester downstream.

Series 225T-Polyester Panel or Cube -Two-ply 1” nominal media construction, using a ¾” nominal white polyester on the up-stream, with internal tackification followed by a ¼” dense white polyester downstream.

Series 325T-Polyester Panel or Cubes -Three-ply 1-3/4” nominal media construction, using a 1-1/2” nominal white/green dual density, multidenier polyester upstream, with internal tackification followed by a ¼” dense white polyester downstream.

Series 425T-Poylester Panel or Cubes -Four-ply 1-3/4” nominal media construction, using a 1-1/2” nominal white/green/white tri-density, multi-denier polyester upstream, with internal tackification followed by a ¼” dense white polyester downstream.

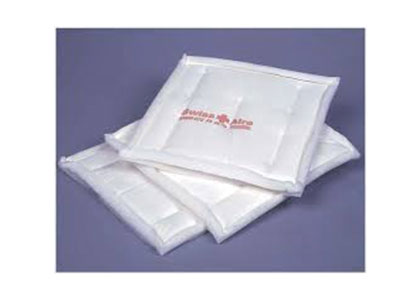

SAR-1 Panels

– Premium choice for panel filtration
– Metal support is dielectrically heat sealed between the two media layers
– First layer is designed to catch large particles entering the booth
– Second layer is designed to catch the smaller particles
– 100% of the fibers in the second layer are tackified
– Metal support made from 9 gauge galvanized
